QIANLI THERMAL CAMERA Fault DETECTOR FOR MOBILE PHONE PCB TROUBLESHOOT LEAKAGE CURRENT RAPID DIAGNOSITC INSTRUMENT

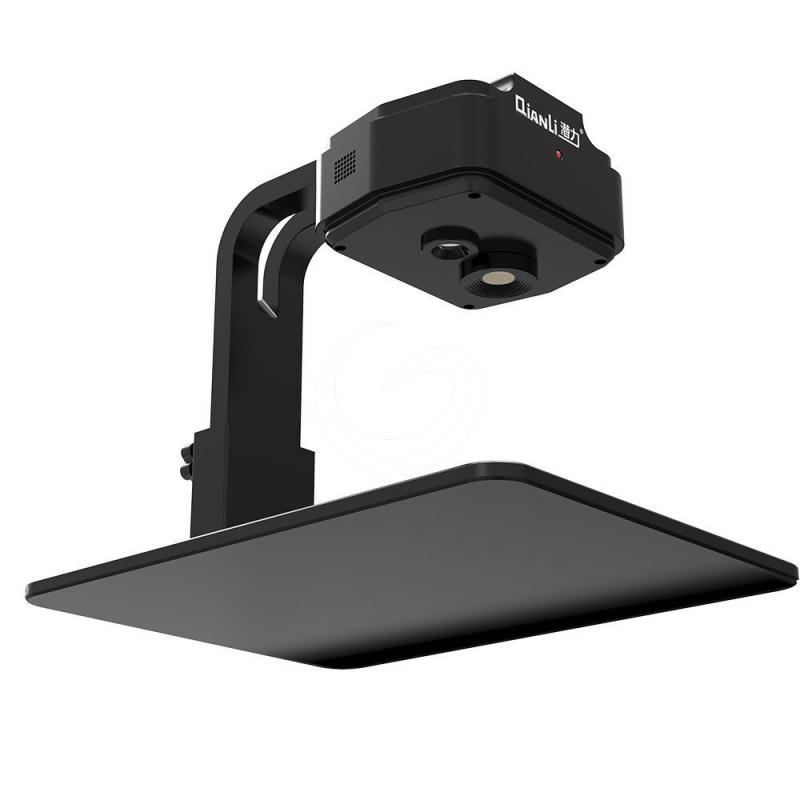

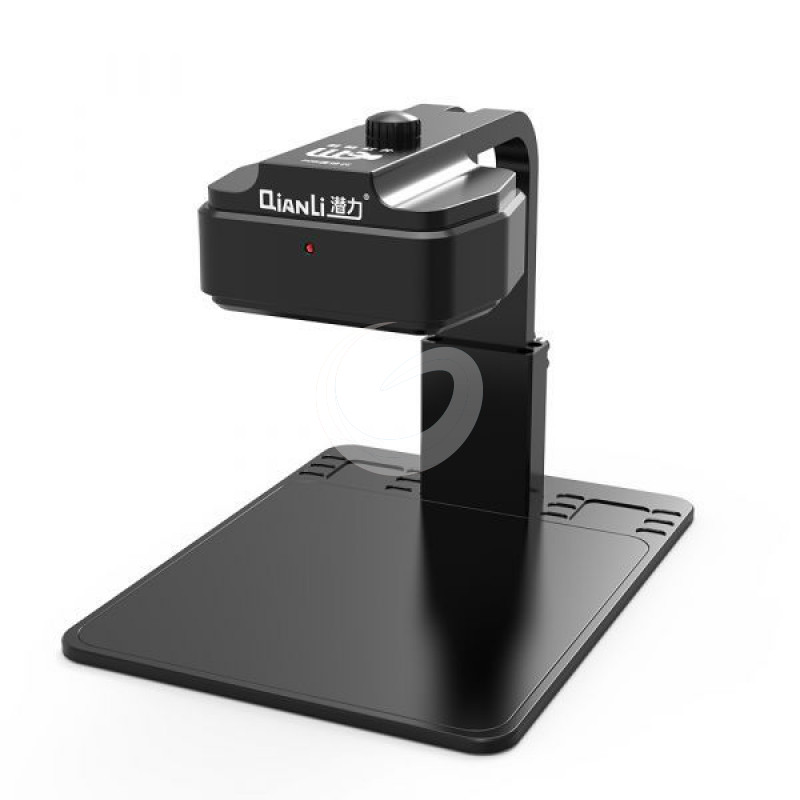

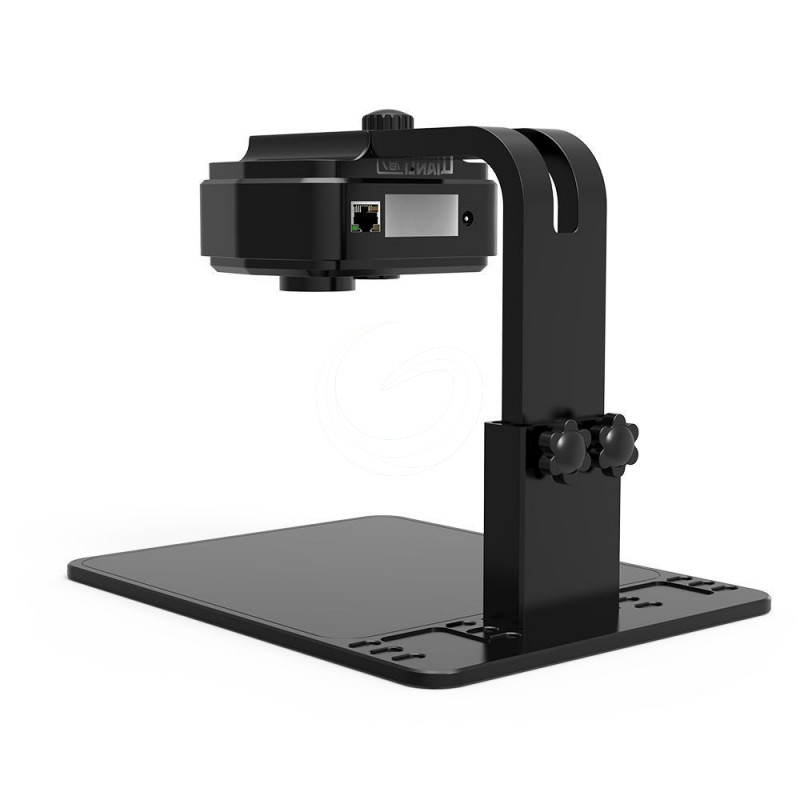

Figure 1: PCB quick diagnostic apparatus

PCB quick diagnostic apparatus is a new generation of maintenance equipment, which is the world's first to use dual-spectral interleaved positioning technology. Through powerful PC-side intelligent analysis software, the use of intelligent algorithms, it can detect the motherboard chip operating temperature by the use of intelligent technology. By the normal / abnormal motherboard comparison analysis, it can quickly and accurately identify problem chip, which can assist maintenance personnel in overhauling the problem board, greatly improve the efficiency and maintenance accuracy.

PCB infrared thermal imaging diagnostic apparatus is composed of three parts, the front-end detection host, and adjustable lift bracket and computer client analysis software.

The front end host is composed of visible and infrared dual vision lens, which can display visible light screen, infrared thermal imaging screen, visible light / infrared thermal imaging fusion screen. It can locate the position of problematic chip quickly by observing the different screen switch. Besides, the visible lens can be uninstalled to replace electron microscope lens anytime, which can be used as electronic microscope, a machine with multi-function. In order to reach the best observation distance, it comes with the adjustable bracket. By adjusting the distance between the machine and PCB, it can have the best clear imaging effect.

By Computer client analysis software, intelligent identification algorithm, running temperature of each chip on PCB board can be displayed on the screen and the maximum temperature value of the chip can be also intelligently positioned .Through the normal / abnormal motherboard comparison analysis, quickly locate the problematic chip position. At the same time the software can take pictures, video to reserve maintenance motherboard photos, video proofs, to provide reference comparison date for future maintenance.

2.Product features

• Detection host, lifting bracket with removable design, easy to assemble, carry
• The visible lens can be disassembled and replaced with electron microscope lens to act as electronic microscope, a multi-purpose machine

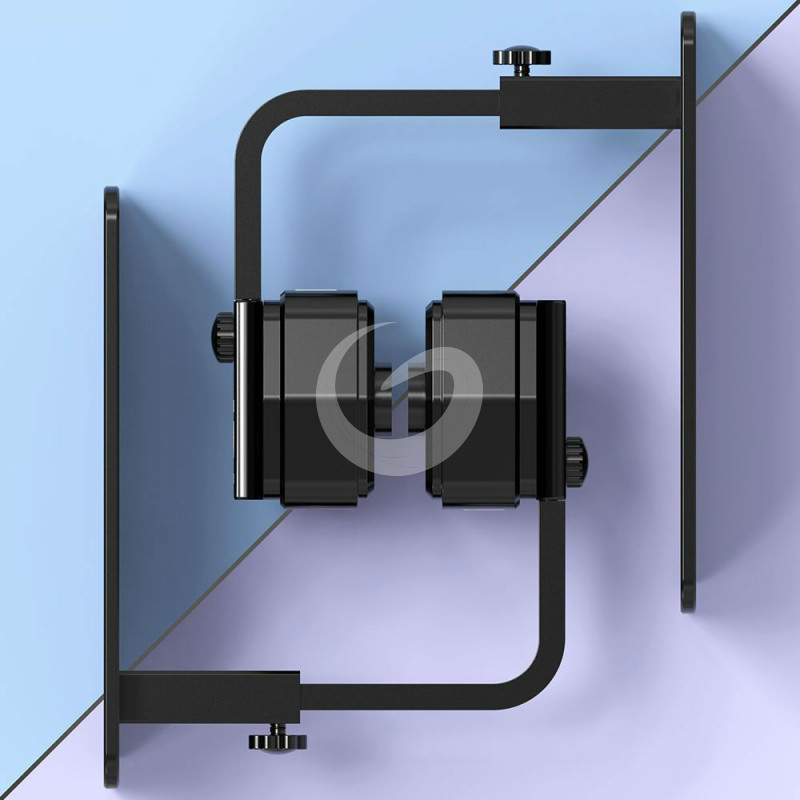

• Bracket can be adjusted by knot to reach best observation distance
• Visible light and infrared thermal imaging dual light lens showing different picture effects
• Visible / infrared thermal imaging dual light fusion, showing a more delicate picture effect
• The software intelligence recognition algorithm can display each chip temperature value
• Through the normal / abnormal motherboard comparison analysis by software, quickly locate the problematic chip
• The software side can record each time maintenance motherboard photo data by taking picture and video

3.Parameters

4.Case display

Figure 2: Normal/Abnormal motherboard Contrastive analysis mode

Note: Normal motherboard, abnormal motherboard intelligent comparison analysis mode. The client comes with a variety normal motherboard database of mobile phone. It will Import the corresponding model board in the database when in the maintenance of the mobile phone motherboard. The normal working temperature of each component Value can be displayed in real time, through the abnormal motherboard and the same location of the same motherboard components, if there is a large difference in temperature, we can initially determine the problem location, which greatly improve work efficiency and reduce maintenance difficulties.

Figure 3: Electron microscope mode

Note: PCB quick diagnostic apparatus can be used as mobile phone board fault detection equipment and also be used for electronic microscope; universal CS interface can be quickly replaced by electron microscope lens, variable electron microscope.

5.Packing list:

1. Host x 1
2. Bracket x 1
3. Bracket base x 1
4. Small knob x 3
5. Anti-static mat x 1
6. power supply x 1
7. cable x 1
8. Warranty Card x 1
9. Certificate x 1
10. Instruction manual x 1
