Product Description:

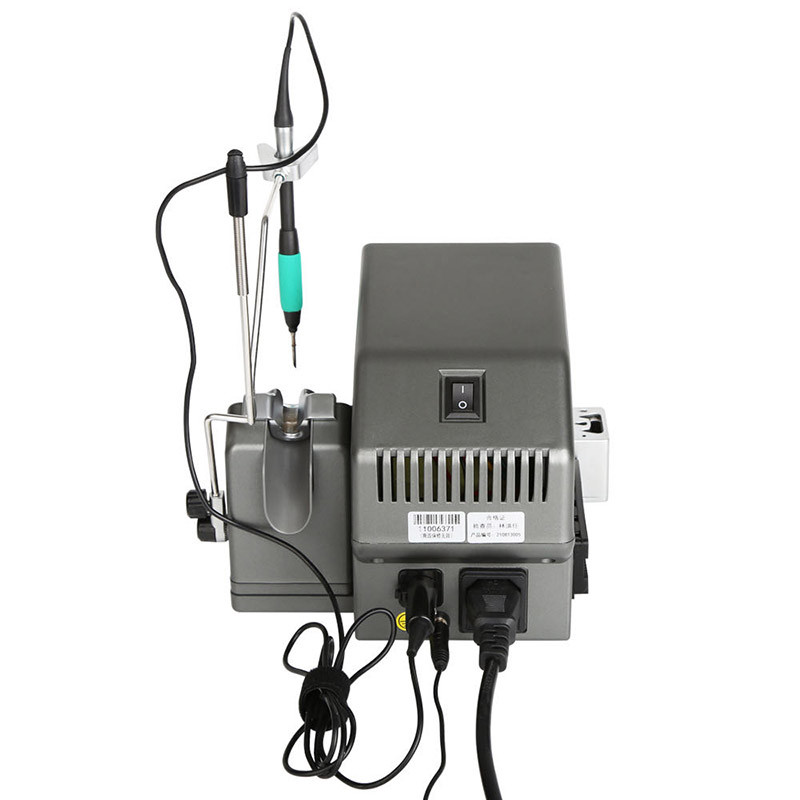

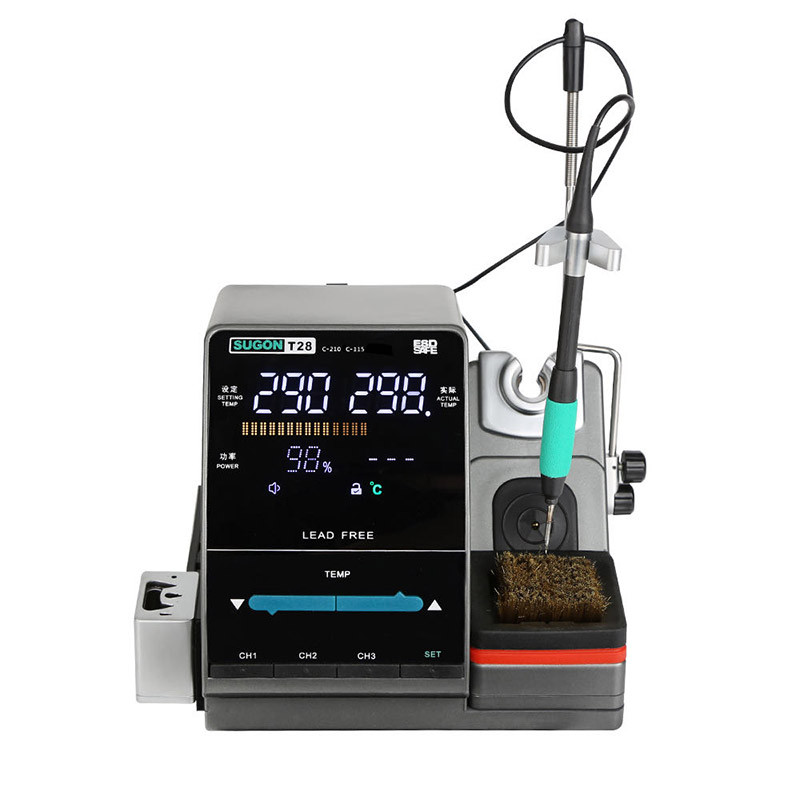

Model: SUGON T28

Power Consumption: 120W

Input Voltage: AC 110V / AC 220V 50/60Hz

Range of Temperature: Decide by working mode(200℃-450℃ / 392°F-842°F)

Temperature Stability: ±2℃/Without air flow and no load

Tip to Ground Resistance: <1Ω(DC)

Tip to Ground Potential: <25mV(True RMS)

Quick operation:

Short press SET button once to switch ℃/°F display

Long press SET (lock/unlock) to set storage channel

When the power is off, press and hold the SET key for about 3 seconds to automatically enter the temperature calibration interface, press the up and down keys to adjust the temperature, after the adjustment is completed, press the SET key to save and exit

Button state, press and hold the CH1 button for about 3 seconds to turn on/off the buzzer sound

Feature:

1. Equipped with quick-change soldering iron tip device and soldering iron tip storage silicone, it is more convenient to use.

2. Equipped with two handles (C210&C115) and two storage brackets, which can be replaced as needed.

3. Equipped with innovative copper wire brush and traditional copper wire ball, it is more convenient and efficient to clean the soldering iron tip.

4. The chip program controls the temperature, quickly and accurately heats up and heats, and the tin is melted in two seconds.

5. The heating core protection function automatically stops working before releasing a short circuit to protect the machine from damage.

Note: The two handles cannot be used at the same time. The handle can be replaced by plugging and unplugging the interface cable of the handle, which is convenient to use.

Package includes:

● T28 Soldering Station*1

● C115 (JBC) Tips with Handle*1
● C210 (JBC) Tips with Handle*1

● Power Cable*1
● Ground Cable*1

● Cable Concentrator*1
● Instruction Manual*1
